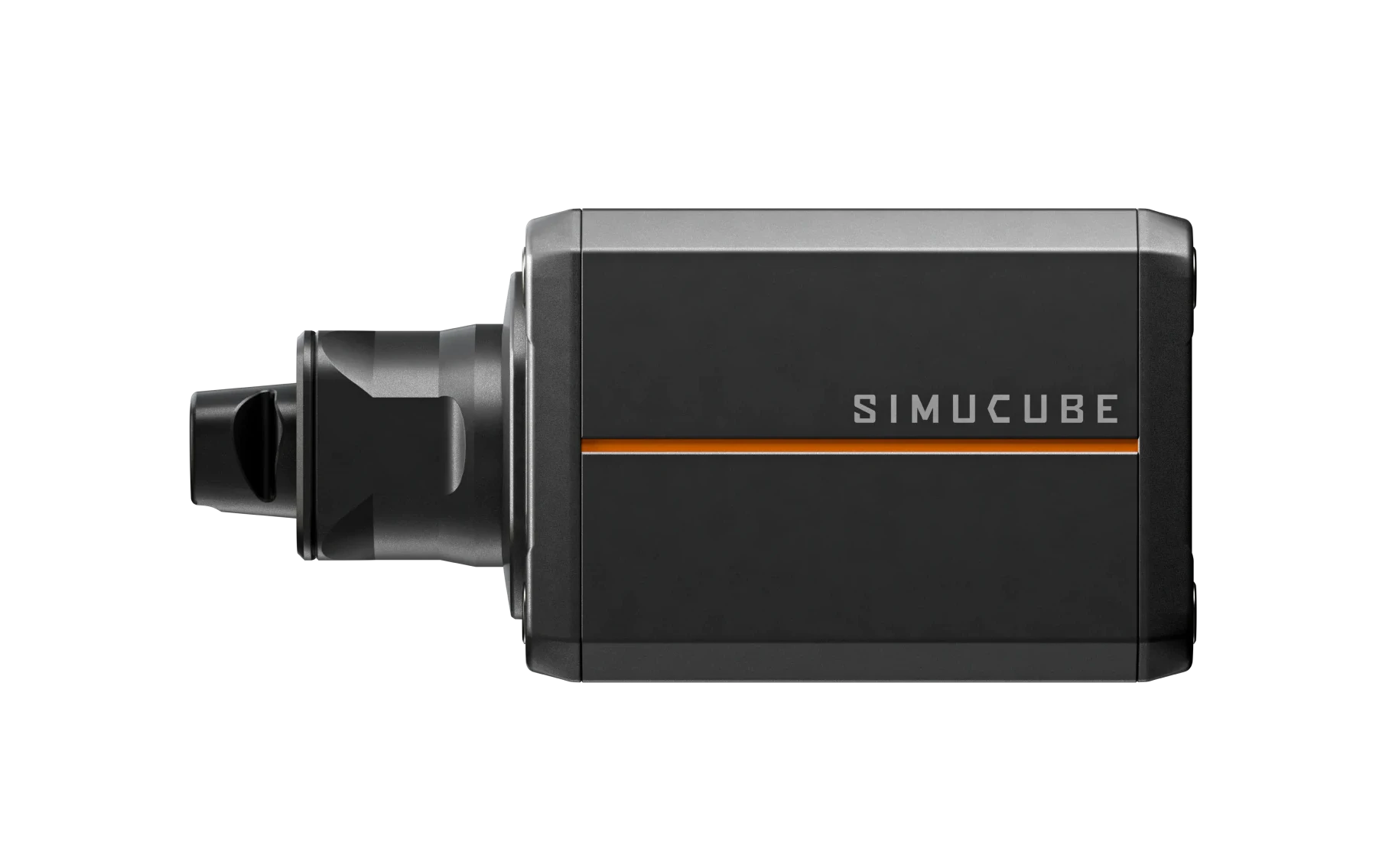

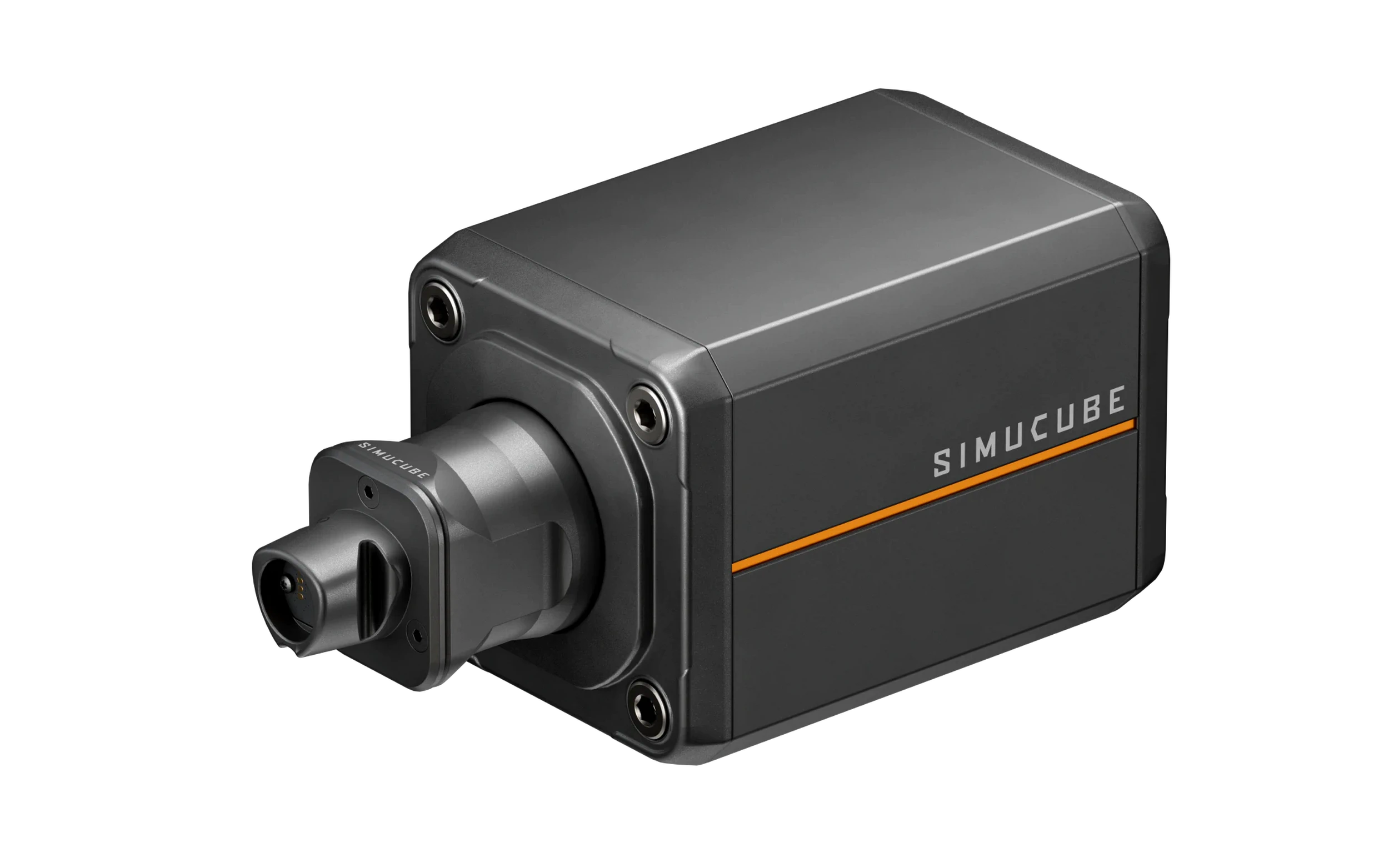

Simucube 3 is the new flagship direct drive force feedback wheelbase – the engine that turns steering from an accessory into a professional racing instrument, as close as sim racing gets to a real race car.
Simucube 3 delivers even more precise, smooth, industry-leading force feedback – with easier configuration, and exceptionally efficient premium industrial-grade servo motors engineered exclusively for Simucube. Push with everything you’ve got. It will never hold you back.
Dimensions
- Wheel base dimensions: 135 x 135 x 278 mm
- Package dimensions: 190 x 300 x 390 mm
- Mounting: Front and Bottom
- Mounting hole pattern DIA: 135 mm and 78,4 mm
- Flange centering feature DIA: 110 mm
- Wheel base weight: 8.7 kg
Specifications
- Motor type: Direct drive optimized SPM motor
- Max torque: 15 Nm
- Angle sensor: 23-bit absolute (8 000 000 steps)
- Power supply: 280 W
- Warranty: 3 years
Included in Package
- 1x Simucube 3 Sport wheelbase
- 1x Power adapter
- 1x RJ45 Cable
- 1x AC power cord
- 1x Quick Start Guide
- 1x Control box
Fasteners kit
- 4x M8 washer
- 4x M6 washer
- 2x M5 washer
- 4x M8x35 allen head bolt
- 4x M8x30 allen head bolt
- 2x M5x30 allen head bolt
- 4x M6x16 allen head bolt
- 2x M5 t-slot nut 8mm slot
Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub
